DS5110 1D CCD Barcode Scanner with 32 Bit CPU and 600mm Depth

DS5110 1D CCD Barcode Scanner with 32 Bit CPU and 600mm Depth

  • DS5110 1D CCD Barcode Scanner with 32 Bit CPU and 600mm Depth
  • DS5110 1D CCD Barcode Scanner with 32 Bit CPU and 600mm Depth
  • DS5110 1D CCD Barcode Scanner with 32 Bit CPU and 600mm Depth
  • DS5110 1D CCD Barcode Scanner with 32 Bit CPU and 600mm Depth
  • DS5110 1D CCD Barcode Scanner with 32 Bit CPU and 600mm Depth
  • DS5110 1D CCD Barcode Scanner with 32 Bit CPU and 600mm Depth
DS5110 1D CCD Barcode Scanner with 32 Bit CPU and 600mm Depth
Detalhes do produto:
Condições de Pagamento e Envio:
Quantidade de ordem mínima: 1
Contato
Descrição de produto detalhada
Modelo no.: DS5110 Tipo de interface: USB
Elemento de varredura: CCD Resolução: 3mil Code39
Profundidade de campo: 10-600mm Modo de varredura: Manual, contínuo, digitalização automática, piscando
Imprimir contraste: 20% CPU: bocado 32
Comprimento do cabo: 1,5m Peso: 147g
Comunicação: USB ((USB-KBW,USB-COM), RS232 Temperatura operacional: -20 a 50 graus
Dimensão: L161mm * L63mm * A80mm altura de gota: 1,5m
Fonte de luz: Luz vermelha visível, 625 ± 10nm
Destacar:

1D CCD barcode scanner with 32-bit CPU

,

DS5110 barcode scanner 600mm depth

,

1D barcode scanner with long-range scanning

High Performance Processor 1D Handheld Barcode Scanner CCD Barcode Reader
Product Overview
The DS5110 is a high-performance 1D barcode scanner featuring advanced CCD image recognition technology. Capable of reading barcodes from various surfaces including paper, goods, and screens, this scanner is ideal for manufacturing, warehousing, logistics, healthcare, retail chains, mobile payments, and inventory management.
DS5110 1D CCD Barcode Scanner with 32 Bit CPU and 600mm Depth 0
Technical Specifications
Parameter Specification
Scan Type Linear CCD
Light Source Visible red light, 625±10nm
CPU 32-bit
Resolution 2500
Reading Precision ≥3mil/0.076mm (PCS90%, Code 39)
Decoding Speed 300 times/s
Depth of Field 10mm-600mm
Scan Modes Manual, Continuous, Auto Sense, Flashing
Scan Angles Pitch: ±60°
Roll: ±30°
Skew: ±60°
Supported Symbologies UPC-A, UPC-E, EAN-8, EAN-13, Code 128, Code 39, Code 93, Interleaved 2 of 5, and 20+ other formats
Dimensions 161mm × 63mm × 80mm
Weight ≈147g (without cable)
Communication USB (USB-KBW, USB-COM), RS232
Power Supply DC 5V@80mA (operating)
Operating Temperature -20ºC to 50ºC
Storage Temperature -40ºC to 70ºC
Drop Resistance 1.5m
Key Features
  • Ergonomic design for comfortable extended use
  • Reads all mainstream 1D barcodes with high accuracy
  • High-performance processor enables fast decoding (3mil precision)
  • Supports multiple languages and operating systems
  • Dual interface options: USB and RS232
  • Ideal for supermarkets, warehouses, mobile payments, and chain stores
DS5110 1D CCD Barcode Scanner with 32 Bit CPU and 600mm Depth 1 DS5110 1D CCD Barcode Scanner with 32 Bit CPU and 600mm Depth 2

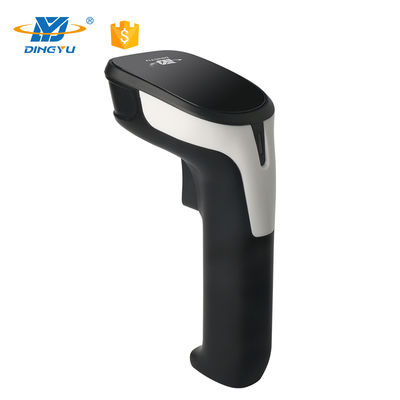

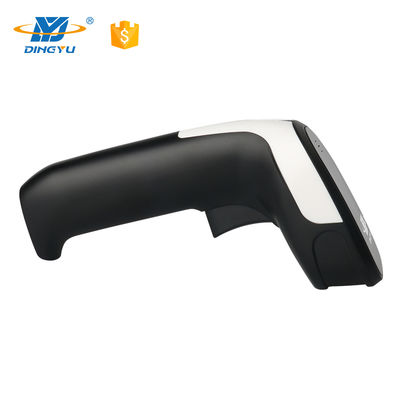

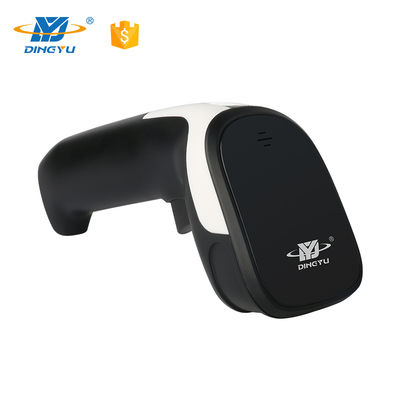

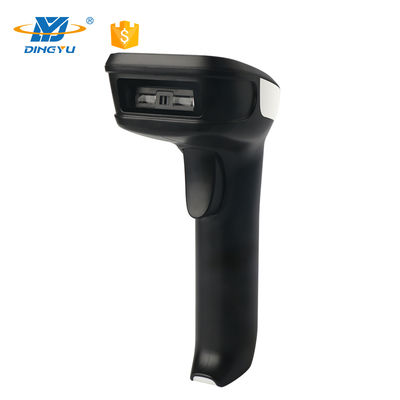

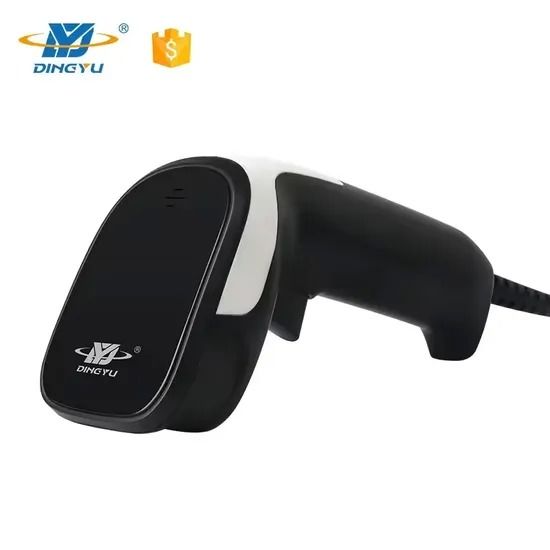

Product Images
DS5110 1D CCD Barcode Scanner with 32 Bit CPU and 600mm Depth 3 DS5110 1D CCD Barcode Scanner with 32 Bit CPU and 600mm Depth 4
Packaging & Shipping
DS5110 1D CCD Barcode Scanner with 32 Bit CPU and 600mm Depth 5
Certifications
DS5110 1D CCD Barcode Scanner with 32 Bit CPU and 600mm Depth 6 DS5110 1D CCD Barcode Scanner with 32 Bit CPU and 600mm Depth 7
Frequently Asked Questions
Q1: How do you ensure the high quality of your barcode scanners?
DYscan is a professional manufacturer with 18 years of experience in barcode scanner development. Our products undergo rigorous testing including engine age tests, wire bend tests, switch life tests, and shock resistance tests. All scanners are CE, FCC, and ROHS certified.
Q2: What is your quality control process?
We conduct 1 million wire bend tests and button tests. Every device is thoroughly tested before shipment.
Q3: What is the warranty period?
12 months warranty from date of purchase.
Q4: How do you maintain stable performance?
We use assembly line production with each product tested at least 4 times before delivery.
Q5: Do you offer OEM/ODM services?
Yes, we provide OEM services including custom logos, packaging, and manuals. Our technical team supports ODM development.
Q6: What are your company strengths?
We have dedicated R&D, production, and sales departments with specialized teams ensuring product quality and customer satisfaction.
Q7: Are drivers required?
No, our scanners support plug-and-play operation with Windows, Mac OS, iOS, Linux, Android, and other systems.
