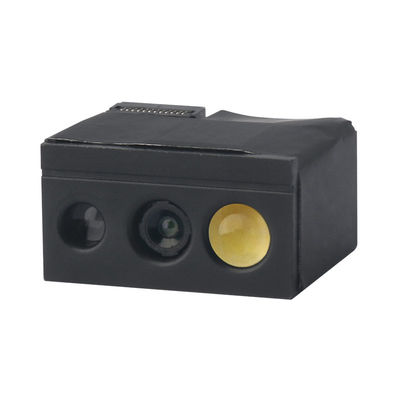

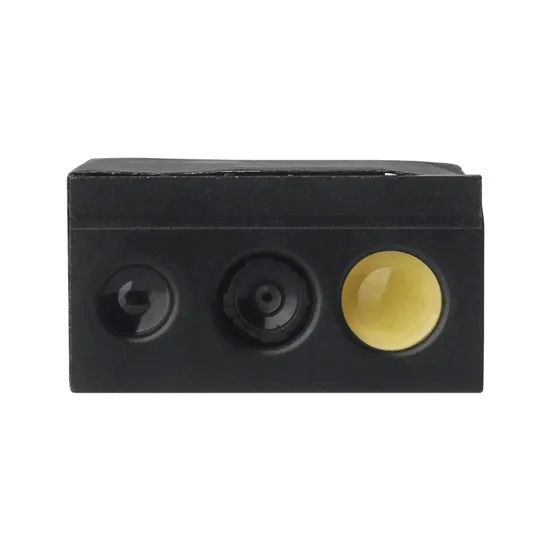

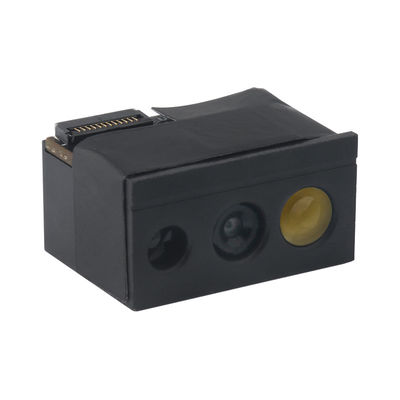

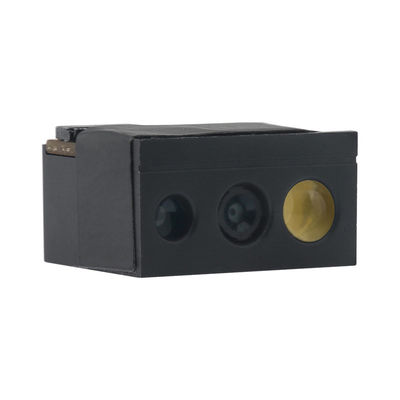

Name: Small Embedded 2D QR Code Barcode Scanner Module with 1 Million Pixel CMOS Image Recognition and 65cm/s Scan Speed
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 20 USD
Availability: InStock

Casa Produtos Motor da varredura do código de barras

Small Embedded 2D QR Code Barcode Scanner Module with 1 Million Pixel CMOS Image Recognition and 65cm/s Scan Speed

Detalhes do produto:

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	1
Preço:	20

Contato

Descrição de produto detalhada

Modelo não.:	DE2390	Tipo de interface:	USB
Velocidade de varredura:	65cm/s	Elemento de varredura:	CMOS
Resolução:	3mil/0,076 mm	Sensor de imagem:	1280*800
Modo de varredura:	Análise automática, contínua	Imprimir contraste:	20%
Fonte de energia:	CC 3,3 V, 200 mA	Dimensões:	21.5 mm L* 15,9 mm W * 11,30 mm H
Fonte de luz:	LED branco, LED vermelho	CPU:	ARM32 bits
Profundidade de campo:	50 mm ~ 750 mm	Tolerância ao movimento:	65cm/s
Temperatura operacional:	-20ºC a 50ºC
Destacar:	1 Million Pixel Barcode Scanner Module , 65cm/s Scan Speed QR Code Scanner Module , 3mil/0.076mm Resolution 2D Barcode Scan Engine

Small Embedded 2D QR Code Mini Passport OCR Image Barcode Scanner Module

The DE2390 is a high-performance embedded 2D barcode module featuring advanced CMOS image recognition technology. Equipped with a 1 million pixel global camera, it delivers excellent reading performance for both paper and screen-based barcodes. Includes OCR functionality for reading ID and passport characters.

Technical Specifications

Parameter	Details
Dimensions	21.5mm (L) × 15.9mm (W) × 11.30mm (H)
Interface	USB, USB-com (requires driver), TTL (USB protocol: Full Speed, USB 2.0)
Light Source	White LED lighting, Red LED aiming (525nm wavelength)
CMOS	1280×800 resolution
CPU	ARM 32-bit processor
Resolution	≥3mil/0.076mm (PCS90%, CODE 39)
Depth of Field	50mm-750mm (varies by barcode type)
Scan Modes	Trigger mode, Auto scan, Continuous, Command control
Prompting Modes	LED indicator, buzzer
Reading Angles	Roll: ±360°, Pitch: ±60°, Yaw: ±55°
Viewing Angle	Horizontal 40° × Vertical 27°
Motion Tolerance	65cm/s
Power Input	3.3V (Standby: 95mA, Decoding: 200mA average)
Print Contrast	20% PCS
Supported Symbologies	1D: UPC-A, UPC-E, EAN-8, EAN-13, Code 128, GS1-128, Code 39, Code 32, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5, Codabar, MSI, GS1 Databar, China Post, Tepepen, Febraban, GS1 Composite 2D: QR Code, Micro QR Code, Data Matrix, PDF417, Micro PDF417, MaxiCode, Aztec, HanXin Code
Operating Temperature	-20°C to 50°C
Storage Temperature	-40°C to 60°C
Humidity	5% to 95% (non-condensing)
Vibration Test	10H@125RPM
