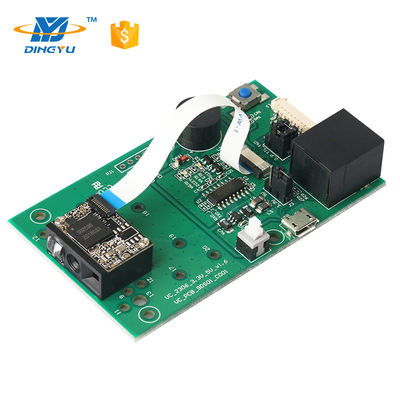

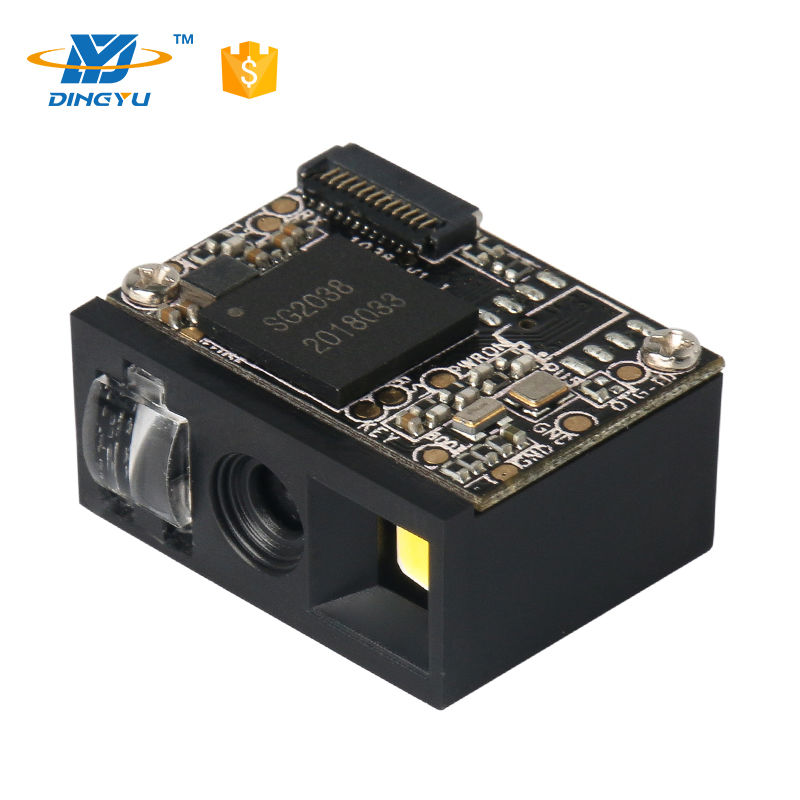

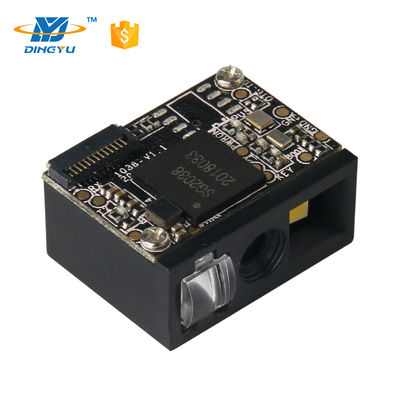

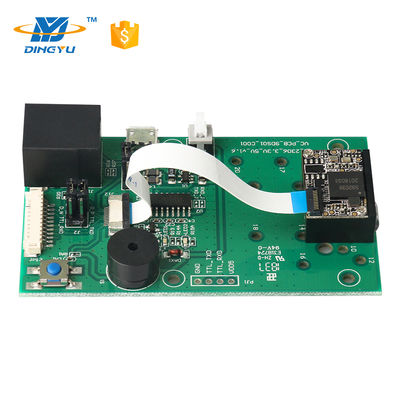

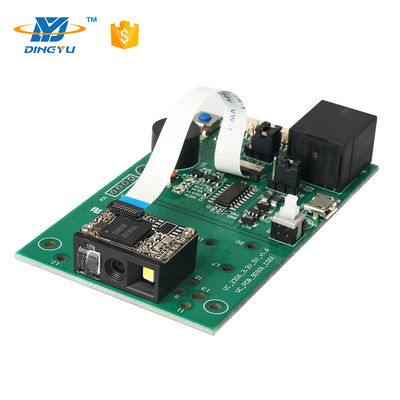

Compact 2D Barcode Scan Engine with 640*480 Resolution 25cm/S Scan Speed and 4mil/0.1mm Reading Precision

Compact 2D Barcode Scan Engine with 640*480 Resolution 25cm/S Scan Speed and 4mil/0.1mm Reading Precision

  • Compact 2D Barcode Scan Engine with 640*480 Resolution 25cm/S Scan Speed and 4mil/0.1mm Reading Precision
  • Compact 2D Barcode Scan Engine with 640*480 Resolution 25cm/S Scan Speed and 4mil/0.1mm Reading Precision
  • Compact 2D Barcode Scan Engine with 640*480 Resolution 25cm/S Scan Speed and 4mil/0.1mm Reading Precision
  • Compact 2D Barcode Scan Engine with 640*480 Resolution 25cm/S Scan Speed and 4mil/0.1mm Reading Precision
  • Compact 2D Barcode Scan Engine with 640*480 Resolution 25cm/S Scan Speed and 4mil/0.1mm Reading Precision
  • Compact 2D Barcode Scan Engine with 640*480 Resolution 25cm/S Scan Speed and 4mil/0.1mm Reading Precision
Compact 2D Barcode Scan Engine with 640*480 Resolution 25cm/S Scan Speed and 4mil/0.1mm Reading Precision
Detalhes do produto:
Condições de Pagamento e Envio:
Quantidade de ordem mínima: 1
Preço: 10
Contato
Descrição de produto detalhada
Modelo não.: DE2120 Tipo de interface: USB
Velocidade de varredura: 25cm/s Elemento de varredura: CMOS
Sensor de imagem: 640*480 Modo de varredura: Análise automática, contínua
Imprimir contraste: 25% Peso: 4g
cabo FFC: 5cm altura de gota: 1.2m
Profundidade de campo: 25mm-400mm Precisão de leitura: 4 mil/0,1 mm
Dimensões: 21,2 mm * 16,0 mm * 12,0 mm Fonte de energia: CC 3,3 V @160 mA
Temperatura operacional: -20ºC a 50ºC
Destacar:

640*480 Resolution 2D Barcode Scan Engine

,

25cm/S Scan Speed Embedded Barcode Scanner Module

,

4mil/0.1mm Reading Precision QR Code Scanner Module

Small Embedded 2D Scanning Engine Supports USB, TTL and Other Interfaces
Compact 2D Barcode Scan Engine with 640*480 Resolution 25cm/S Scan Speed and 4mil/0.1mm Reading Precision 0

The DE2120 is a practical embedded barcode scanner module featuring leading CMOS image recognition technology and intelligent image recognition system. This OEM 2D barcode scanner module with USB output can scan universal 1D and 2D codes, supporting multiple interfaces including USB and TTL. It reads barcodes from paper, goods, screens, and other media, and can be easily embedded in various OEM products including handheld devices, portable equipment, fixed installations, and barcode collectors.

Product Parameters
Scan Type CMOS
Light Source Red Light LED 625±10nm(aim), 5600K LEDs (Lighting)
CPU 32-bit
Resolution 640*480
Reading precision ≥4mil/0.1mm(PCS90%,Code 39)
Decoding speed 25CM/S
Depth of field 25mm-400mm
Scan Mode Manual, Continuous, Auto Sense, command control
Scan angle

Test Conditions: CODE39,10mil/0.25mm,PCS90%

Pitch: ±45°

Roll: ±360°

Skew: ±40°
Print Contrast Signal ≥25%
Ambient Light Dark environment, indoor natural light
Symbologies

1D: UPC-A, UPC-E, EAN-8, EAN-13, Code 128, GS1-128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Strande 2 of 5, Codabar(NW-7), MSI Plessey, GS1 Databar(RSS), China Post, etc.

2D: QR Code, Data Matrix, PDF417, Micro PDF 417, Aztec, etc.
Weight <4g
Dimension (L)21.2mm * (W)16.0mm * (H)12.0mm
Communication Mode USB(USB-KBW,USB-COM), TTL
Interface Type FFC 12PIN Pitch 0.5
Power Supply DC 3.3V @160mA(Work)
Operating temperature -20ºC to 50ºC
Storage temperature -40ºC to 70ºC
Humidity 5% to 95%(non-condensing)
Drop Height 1.2m
Temp. Test

30 minutes for high Temp., 30 minutes for low Temp.

High Temp.: 60ºC

Low Temp.: -20ºC
Transport vibration Test 10H@125RPM
Detailed Photos
Compact 2D Barcode Scan Engine with 640*480 Resolution 25cm/S Scan Speed and 4mil/0.1mm Reading Precision 1 Compact 2D Barcode Scan Engine with 640*480 Resolution 25cm/S Scan Speed and 4mil/0.1mm Reading Precision 2
Packaging & Shipping
Compact 2D Barcode Scan Engine with 640*480 Resolution 25cm/S Scan Speed and 4mil/0.1mm Reading Precision 3
Company Profile
Compact 2D Barcode Scan Engine with 640*480 Resolution 25cm/S Scan Speed and 4mil/0.1mm Reading Precision 4
Certifications
Compact 2D Barcode Scan Engine with 640*480 Resolution 25cm/S Scan Speed and 4mil/0.1mm Reading Precision 5
Exhibition
Compact 2D Barcode Scan Engine with 640*480 Resolution 25cm/S Scan Speed and 4mil/0.1mm Reading Precision 6
Frequently Asked Questions
Q1: How do you make sure the high quality barcode scanner?
DYscan: We are professional manufacturer and developer of barcode scanners with 18 years of field experience. Our professional QC team uses testing machines including engine age test, wire bend machine, switch life test, and shock resistance test. All our barcode scanners pass CE, FCC, ROSH certifications.
Q2: How do you make quality control?
DYscan: We perform wire bend tests 1 million times, button tests 1 million times, and all devices are tested before shipping.
Q3: How long is the warranty time of barcode scanner?
DYscan: 12 months
Q4: How to control the performance stable?
DYscan: We use flow line production throughout processing. Every product is tested at least 4 times before delivery.
Q5: Can you provide OEM or ODM service for barcode scanner?
DYscan: We offer OEM services including printing your logo, color box, and user manual. Our technical team supports ODM services.
Q6: What are your strengths?
DYscan: As a professional scanner manufacturer, we have specialized departments with directors overseeing R&D (new product development), production (manufacturing and testing), and marketing/sales (sales team and customer service).
Q7: Do I need to install drivers?
DYscan: No. Our scanners support plug-and-play functionality without requiring driver installation. They are compatible with Windows, Mac OS, iOS, Linux, UNIX, and Android systems.
